Nuova Simonelli Nuova Aurelia XT Commercial Espresso Machine
- Free Shipping for Orders Over $100 in USA 48 States - No International Shipping
Call for package pricing and commercial configuration support: (815) 954-4086.

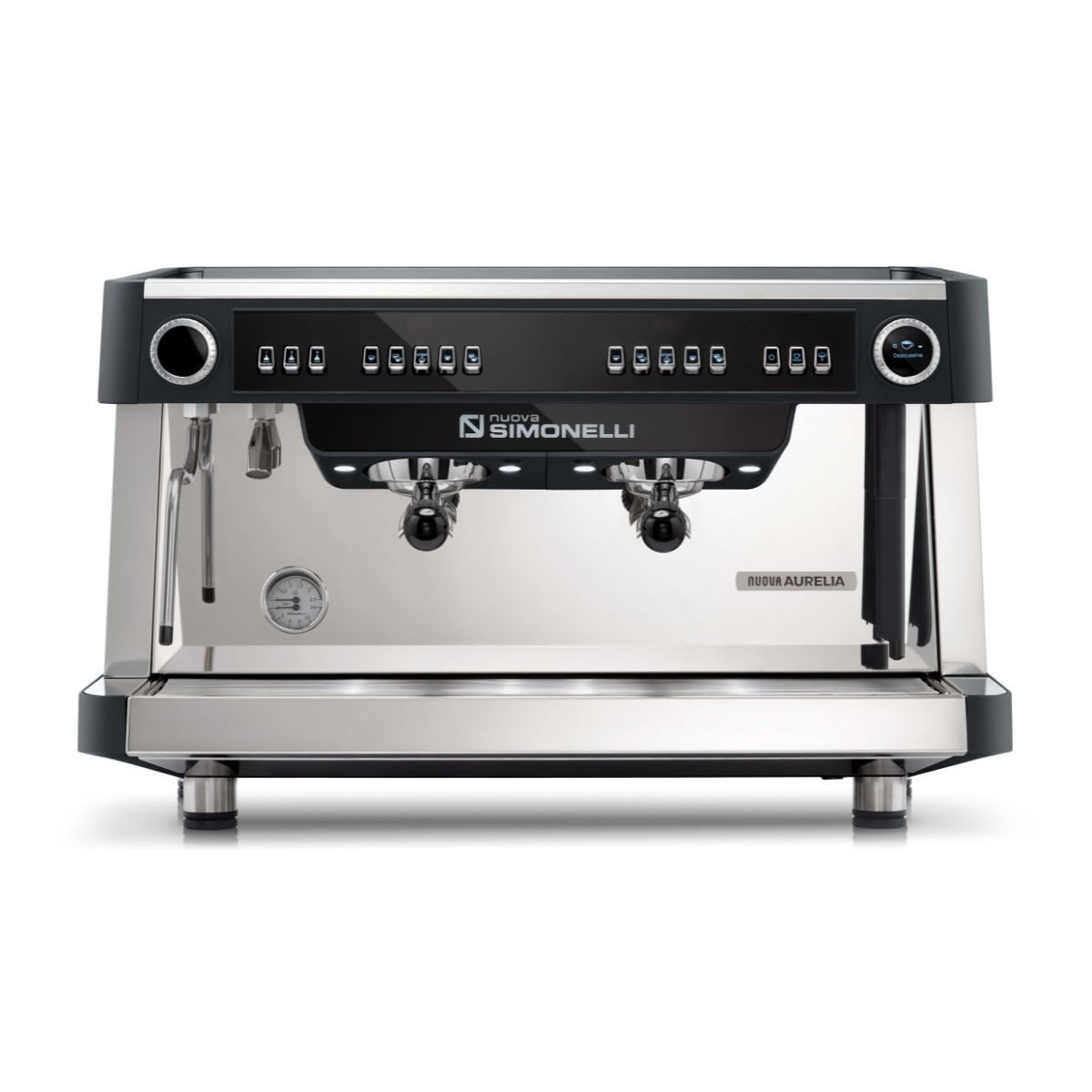

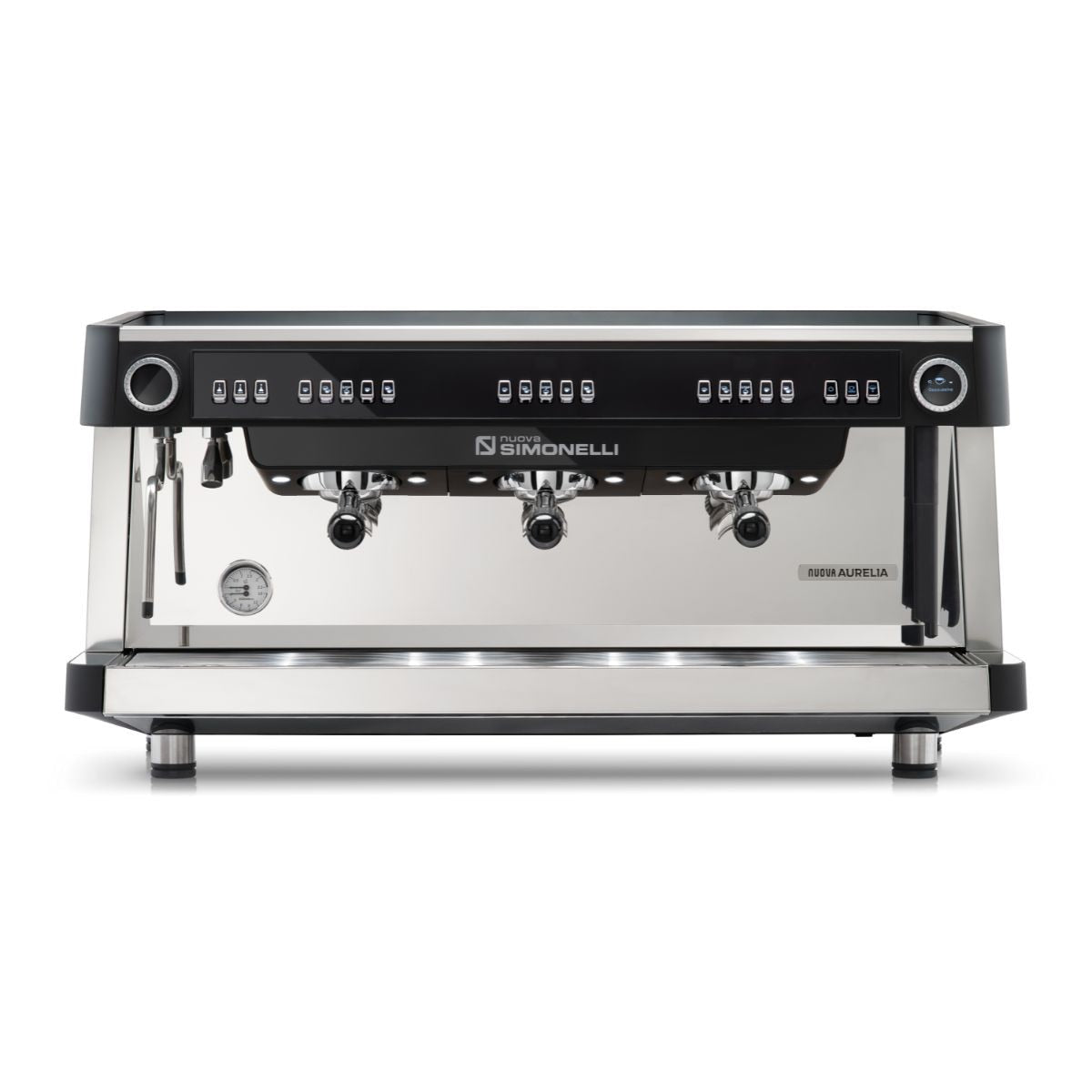

The Nuova Simonelli Nuova Aurelia XT is a high-volume commercial espresso machine built as a complete barista workstation. It combines a touchscreen interface, raised groups, Soft Infusion System, automatic cleaning, LED work-area lighting, and an automation-ready platform designed to improve consistency without slowing an experienced café team.
This U.S.-market product is offered here in 2 Group and 3 Group configurations. The 2 Group is the practical choice for most busy specialty cafés and restaurant coffee bars; the wider 3 Group is intended for sustained peak demand, multiple baristas, and operations that can use the additional brewing position.
Centralizes machine information, programming, and barista-facing controls.
Helps make extraction more forgiving when puck preparation varies slightly.
Supports advanced Nuova Simonelli workflow technologies when included in the selected configuration.
Choose 2 or 3 groups around peak-hour volume, staffing, counter width, and utilities.
Why Choose the Nuova Aurelia?
- Designed as a workstation: controls, lighting, raised groups, cup handling, and the work surface are organized around faster bar flow.
- XT touchscreen interface: gives operators a more intuitive way to monitor and manage the machine.
- Soft Infusion System: supports more repeatable extraction and helps compensate for small tamping inconsistencies.
- Automatic group purge: available on the XT platform to simplify between-shot cleaning and reduce repetitive steps.
- Automated cleaning: guides routine group-cleaning cycles, helping a multi-user café standardize end-of-day care.
- Raised groups: accommodate common takeout cups while preserving a professional espresso-bar workflow.
- LED work-area lighting: improves visibility at the group heads and drip tray during service.
- Energy-management features: insulated boilers, weekly scheduling, and group-management functions are designed to reduce unnecessary heat loss and idle consumption.
- Advanced automation ecosystem: compatible configurations can incorporate E-Milk and C-Automation technologies. Confirm included options before ordering.
2 Group vs. 3 Group Nuova Aurelia
| Specification | 2 Group | 3 Group |
|---|---|---|
| Best fit | Busy cafés, restaurants, roasteries, and two-barista workflows | Sustained high-volume service and bars staffed by multiple operators |
| Width | 32 in | 41 in |
| Depth | 23 in | 23 in |
| Height | 21 in | 21 in |
| Boiler | 10 L | 15 L |
| Electrical load | 4,700 W | 5,200 W |
| Voltage / amperage | 220V, 30A | 220V, 30A |
| Receptacle | NEMA L6-30 twist-lock | NEMA L6-30 twist-lock |
| Raised groups / SIS | Included | Included |
The 3 Group adds another brewing position and a larger boiler, but it also uses nine additional inches of counter width. Choose it only when rush-hour order volume and staffing can make productive use of the extra group. Grinder capacity, milk-drink percentage, cup handling, and bar layout can limit output before the espresso machine does.
Touchscreen Control and Barista Workflow
Nuova Aurelia is designed to reduce friction during repetitive commercial service. The XT touchscreen provides an information-rich control point, while automatic purge and cleaning functions reduce manual steps that are easily skipped during a rush. Raised group heads support taller cups, LED lighting improves visibility, and the sliding tray and work-area design help the barista move cups through the station.
Technology does not replace correct espresso preparation. Grind setting, dose, distribution, tamping, coffee freshness, and recipe development still determine the result. The value of the XT system is that it gives a trained team better tools for repeating the intended recipe across shifts and operators.

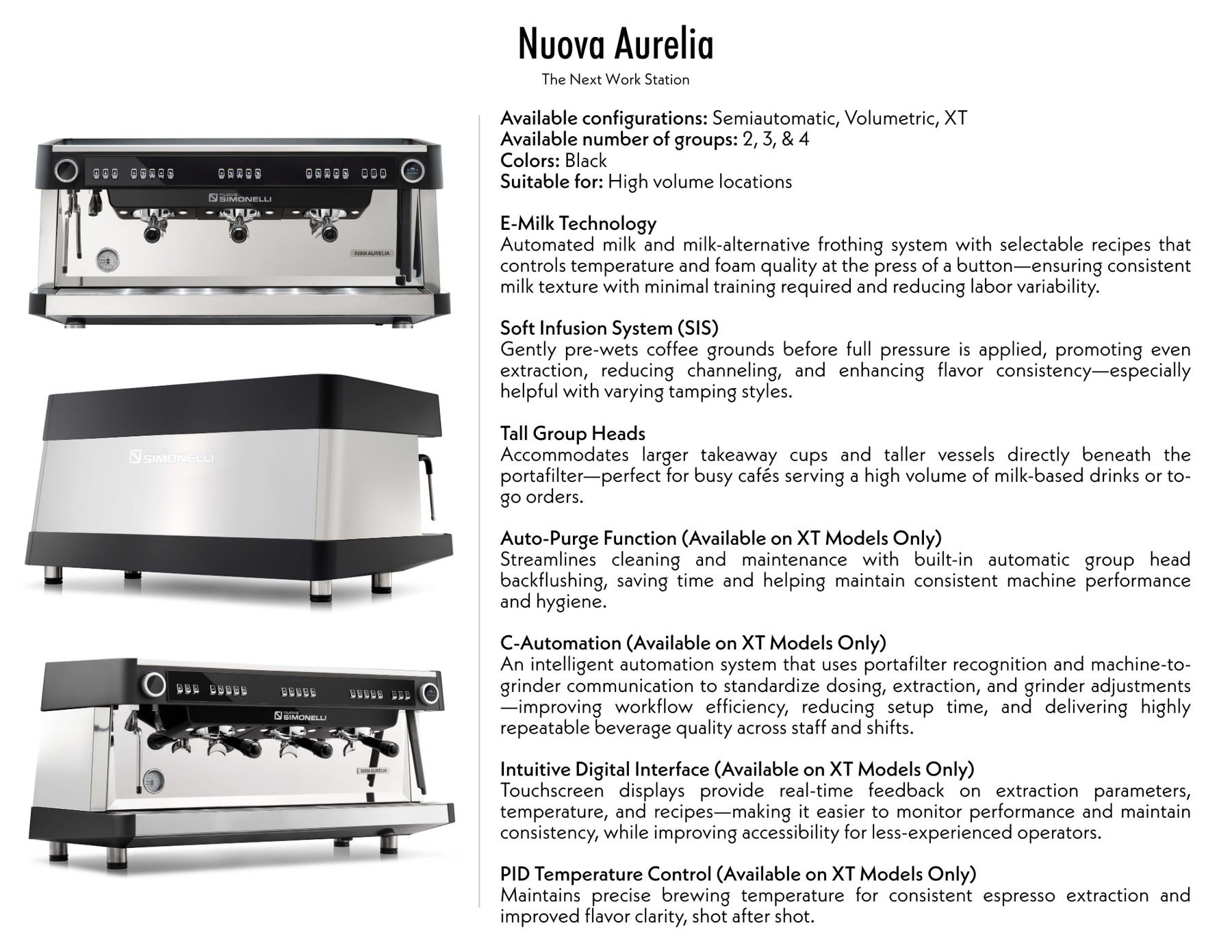

SIS, E-Steam, E-Milk, and C-Automation
SIS Soft Infusion System is included and uses a controlled pre-infusion phase to help produce a fuller, more forgiving extraction. It is useful in high-volume settings where small puck-preparation differences can occur between baristas.
The broader Nuova Aurelia platform can be configured with additional workflow technology:
- E-Steam: electronically controlled steam delivery with temperature feedback to support more consistent milk preparation.
- E-Milk: automated frothing for dairy and plant-based beverages with programmable recipes. This can reduce training demands and improve repeatability on a milk-heavy menu.
- C-Automation: connects compatible machine and grinder workflows using portafilter recognition, Wi-Fi communication, and extraction analysis to help maintain consistency.
These technologies are configuration dependent and should not be assumed to be included in every machine. Contact Espresso Outlet to verify the exact build, compatible grinder, steam-wand package, and lead time.
Nuova Aurelia vs. Aurelia Wave
Nuova Aurelia is a separate, newer platform and does not replace the product identity of the Aurelia Wave Semi-Automatic, Aurelia Wave Volumetric, or Aurelia Wave Digit. The established Aurelia Wave range gives buyers clearly separated semi-automatic, volumetric, and Digit choices. Nuova Aurelia focuses on a redesigned workstation, XT touchscreen operation, more integrated automation options, and updated energy-management features.
Choose between them based on the exact workflow and options—not simply by model age. Aurelia Wave can remain the better value when its control package already matches the bar. Nuova Aurelia is the stronger fit when touchscreen management, an updated workstation, or E-Milk and C-Automation integration are priorities.
U.S. Installation Requirements
This is commercial equipment and requires a professionally prepared site. Confirm the selected group size and final configuration before electrical or plumbing rough-in.
| Electrical | 220V operating range of 208–240V, 30A, NEMA L6-30 twist-lock receptacle within 3 ft |
|---|---|
| Water connection | Dedicated 3/8-in cold-water line with shutoff valve and compression fitting |
| Line pressure / flow | 2–4 bar cold water; minimum 1 GPM |
| Filtration | Less than 1 micron; treatment must be selected from an actual water test |
| Water chemistry | Maximum hardness 3 gpg / 50 ppm; TDS 50–250 ppm; alkalinity 10–150 ppm; chlorine below 0.50 ppm; pH 6.5–8.5 |
| Drain | Open gravity drain with minimum 1.25-in inside diameter within 4 ft of the machine |
| Certification | NSF / ANSI Standard 4 |
Water outside the manufacturer’s range can cause scale, corrosion, flavor problems, and premature component failure. A generic carbon filter is not always adequate. Test the site water, select treatment for the actual hardness and alkalinity, and document filter-change intervals.
Who Is the Nuova Aurelia Best For?
- High-volume specialty coffee shops and multi-barista bars
- Roasteries that need an advanced production espresso workstation
- Coffee-oriented restaurant and hotel programs
- Regional or multi-location operators seeking more repeatable workflows
- Menus with significant milk and plant-based drink volume
- Operations considering connected grinder and machine automation
Official Nuova Aurelia Downloads
- Nuova Aurelia brochure
- Nuova Aurelia 2 Group installation specification sheet
- Nuova Aurelia 3 Group installation specification sheet
- Nuova Aurelia user manual
- C-Automation and GX user manual
- Nuova Aurelia parts book
- Nuova Aurelia official video playlist
Frequently Asked Questions
Is Nuova Aurelia the same machine as Aurelia Wave?
No. Nuova Aurelia is a separate, newer commercial platform. Espresso Outlet continues to list the Aurelia Wave Semi-Automatic, Volumetric, and Digit models separately so buyers can compare the correct controls and specifications.
Should I choose the 2 Group or 3 Group version?
The 2 Group fits most busy cafés and supports an efficient two-barista workflow while using 32 inches of counter width. Choose the 3 Group when sustained rushes, staffing, grinder capacity, and a 41-inch footprint justify the additional brewing position and larger boiler.
Does Nuova Aurelia include a touchscreen?
The U.S. product shown here is the XT touchscreen platform. Exact dosing, milk, steam, and automation options can vary by build, so confirm the final configuration before ordering.
Are E-Milk and C-Automation included?
They are configuration-dependent technologies, not features to assume on every machine. Contact us to confirm pricing, compatibility, and what is included in the proposed build.
What utilities are required?
Both group sizes require 220V/30A power with a NEMA L6-30 receptacle, treated cold water, and an open gravity drain. The 2 Group is rated at 4,700 watts and the 3 Group at 5,200 watts.
Does Espresso Outlet help with configuration and installation planning?
Yes. Espresso Outlet is an authorized Nuova Simonelli distributor. Send us your peak-hour volume, menu, counter plan, available electrical service, and water test so we can help evaluate the correct machine, grinder, and treatment system.
Build a Complete Commercial Espresso Bar
Compare the full Nuova Simonelli collection or browse all commercial espresso machines. For help pairing Nuova Aurelia with a commercial grinder, water system, and bar layout, contact Espresso Outlet before ordering.
