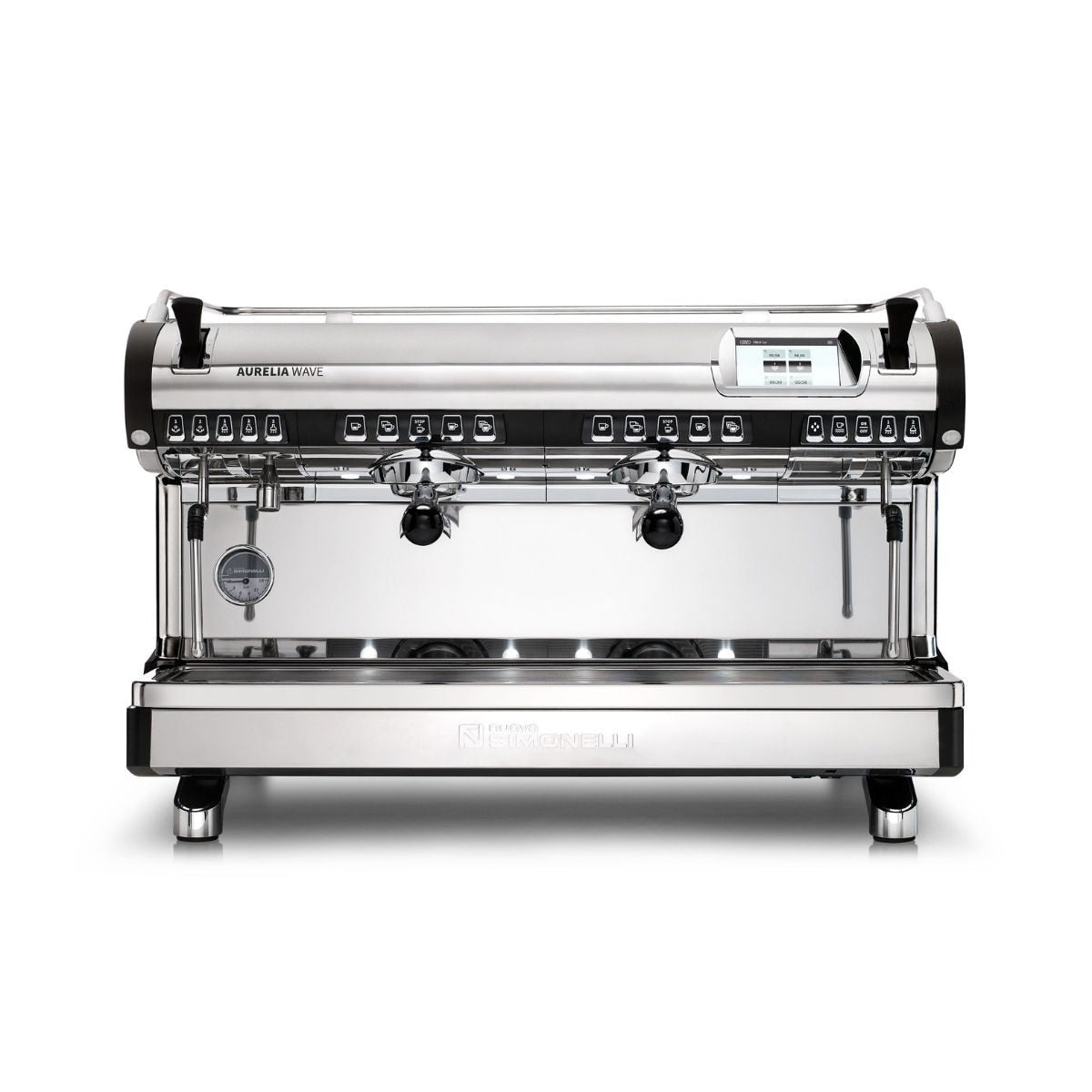

The Nuova Simonelli Aurelia Wave Digit espresso machine is the most advanced of the three current non-T3 Aurelia Wave configurations. It adds touchscreen control, auto-purge and enhanced diagnostics to the high-volume Aurelia platform, making it a strong choice for busy specialty cafés, multi-unit operators and teams that need deeper control with a clear, repeatable interface.
Touchscreen control and operational visibility
The Digit gives baristas and managers quick access to recipe settings, operating information and cleaning functions from its touch interface. Programmed volumetric dosing supports consistent output during rushes, while automatic purge cleans the group screen after the portafilter is removed. Enhanced diagnostics and maintenance information help operators identify issues earlier and support a more disciplined service schedule.
- Touchscreen display: centralizes programming and daily machine controls.
- Volumetric dosing: ends programmed shots automatically for easier multitasking.
- Auto-purge: rinses the group area after portafilter removal to support a cleaner workflow.
- Enhanced diagnostics: provides more operational and service information than the other non-T3 versions.
- SIS soft infusion: helps moderate minor differences in puck preparation.
- Raised groups, cool-touch wands and reverse mirror: improve cup clearance, ergonomics and extraction visibility.
- Automatic cleaning: guides routine group washing from the interface.

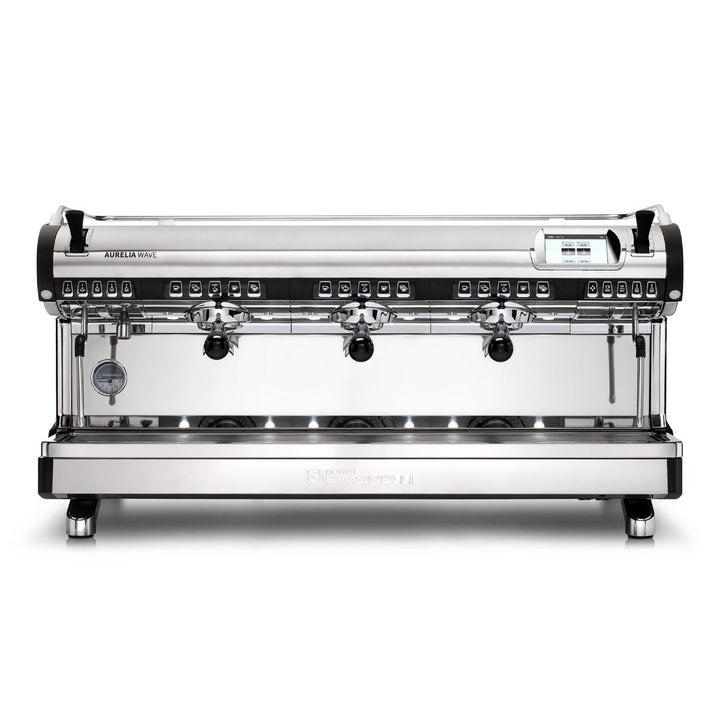

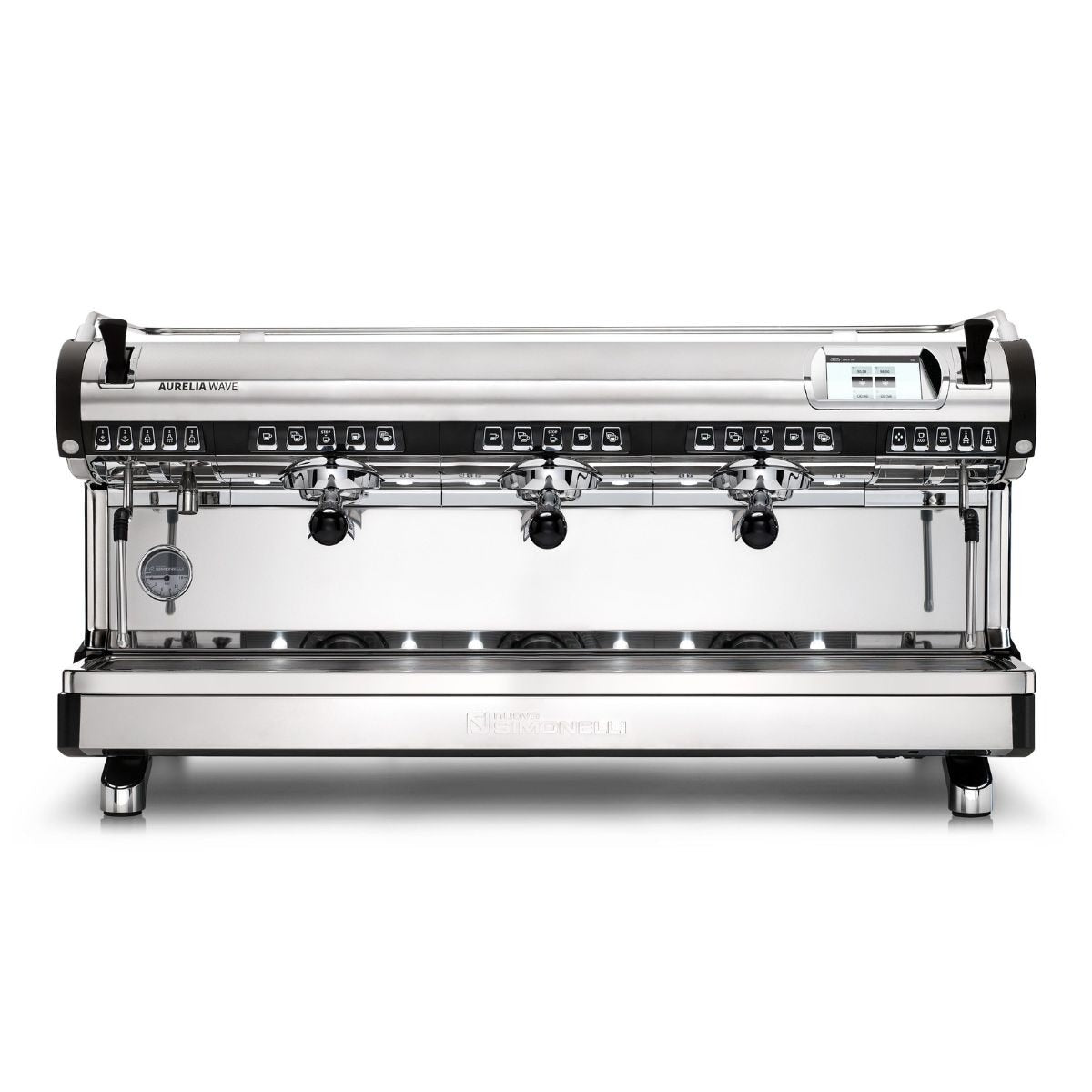

2 Group vs. 3 Group configuration
| Requirement | 2 Group | 3 Group |
|---|---|---|
| Nominal dimensions (W × D × H) | 32 × 24 × 22 in | 41 × 24 × 22 in |
| Approximate net weight | 172 lb | 203 lb |
| Steam boiler | 14 L copper | 17 L copper |
| Electrical | 220 V (208–240 V), 4,700 W, 22 A | 220 V (208–240 V), 5,400 W, 25 A |
| Receptacle | NEMA L6-30 within 3 ft | NEMA L6-30 within 3 ft |
- Water: dedicated 3/8-inch cold-water line with shutoff valve and compression fitting; 2–4 bar line pressure; minimum 1 GPM flow.
- Water quality: filtration no larger than 1 micron; hardness no more than 3 gpg or 50 ppm; TDS 50–250 ppm; alkalinity 10–150 ppm; chlorine no more than 0.50 ppm; pH 6.5–8.5.
- Drain: open gravity drain with at least 1.25-inch inside diameter, within 4 ft of the machine.
- Counter: allow the full nominal footprint and a 2.5-inch utility hole. Installation must follow local electrical, plumbing and backflow-prevention codes.
Have a qualified commercial espresso-machine installer confirm the final site plan and the data plate for the exact machine supplied.
Available factory configuration choices
The standard finish is black, with red or pearl-white side panels and base available as factory color choices. For milk-heavy menus, Nuova Simonelli lists left- and right-side Selector Straight Autosteam, Gooseneck Autosteam and EasyCream upgrades. Water-treatment packages, pod kits and installation/service plans can also be quoted. Those project components remain separate from the two correct base machine variants: 2 Group and 3 Group.
What is included
The official user manual lists the machine, a tamper, one single basket, one double basket per group, one blind basket per group, basket springs, portafilters totaling the number of groups plus one, double spouts, one single spout, a 3/8-inch inlet hose and a 3/4-inch drain hose. Final contents can vary by production revision.
Aurelia Wave Digit downloads
- Aurelia Wave brochure (PDF)
- Digit user manual (PDF)
- 2 Group installation requirements (PDF)
- 3 Group installation requirements (PDF)
- Volumetric/Digit hydraulic diagram (PDF)
- Maintenance alarm reset guide (PDF)
- Certificate of compliance (PDF)
- Current Aurelia Wave parts book (manufacturer PDF)
Digit, Volumetric or Semi-Automatic?
Choose Digit for the richest interface, auto-purge and enhanced diagnostics. Choose the Aurelia Wave Volumetric when programmed dosing and a TFT display are sufficient, or the Aurelia Wave Semi-Automatic when experienced baristas prefer to start and stop every shot manually. See the full Nuova Simonelli collection and our broader selection of commercial espresso machines.
Frequently asked questions
Is the Aurelia Wave Digit the T3 model?
No. Digit and T3 are separate versions. This page covers only the current 2 Group and 3 Group Digit configurations and does not represent a T3 machine.
Does the Digit include automatic group purging?
Yes. Auto-purge is a defining Digit feature on the current U.S. configuration.
Can I add EasyCream?
EasyCream is listed as a factory steam-system option. Contact us before ordering so the correct side, configuration and installation details can be quoted.
Which group size is best for a high-volume shop?
The 3 Group provides an additional brew position and a larger 17 L steam boiler, but it also needs a wider counter and higher electrical draw. The 2 Group is more compact and often the better fit when bar space is limited.
